Big Rock Point Nuclear Power Plant - Charlevoix MI

Address: Big Rock Rd
City: Charlevoix
State: MI
Zip: 49720
County: Charlevoix
Number of visits to this page: 6373
Disclaimer:

Please note that location entries may feature older photos or post card views that may not represent the current appearance, features, addresses, phone numbers, or contact names of the attraction. This site is intended to be a historical as well as current record of various attractions but it is not always possible to have up-to-date information due to the vast number of locations featured here. We ask you consult the propietor for current information.

General Information:

From Wikipedia

Big Rock Point was a nuclear power plant near Charlevoix, Michigan, United States. Big Rock operated from 1962 to 1997. It was owned and operated by Consumers Power, now known as Consumers Energy. Its boiling water reactor was made by General Electric (GE) and was capable of producing 67 megawatts of electricity. Bechtel Corporation was the primary contractor.

Big Rock was Michigan's first nuclear power plant and the nation's fifth. It also produced cobalt-60 for the medical industry from 1971 to 1982.

Ground was broken on July 20, 1960. Construction was completed in 29 months at a cost of $27.7 million. Its license from the Nuclear Regulatory Commission was issued on August 29, 1962. The reactor first went critical on September 27 and the first electricity was generated on December 8, 1962.

A promotional video for the plant featured then GE spokesman Ronald Reagan.

Reactor vessel dimensions: 30 feet (9.1 m) tall x 9 feet (2.7 m) in diameter Thickness of rector vessel walls: 5½ inches A single 10-ton load of uranium nuclear fuel in Big Rock's reactor could generate the same amount of electricity as 260,000 tons of coal. The stack that once stood behind the main generator of the plant was used as a navigational landmark to let boaters aboard freighters have a visual landmark to Charlevoix, Michigan.

Consumers Energy had previously announced that Big Rock Point's operating license would not be renewed when it expired on May 31, 2000. However, economics proved in January 1997 that it was not feasible to keep Big Rock Point running to the license's expiration date.

The reactor was scrammed for the last time at 10:33 a.m. EDT on August 29, 1997, 35 years to the day after its license had been issued. The last fuel was removed from the core on September 20. Decontamination was completed in 1999.

During the decommissioning process it was discovered that a backup safety system at the plant had been inoperable for at least the previous 14 years. The Liquid Poison System (LPS) consisted of a tank filled with a liquid solution containing boron, a neutron absorber. In the event of a control rod failure during a reactor scram, the LPS system would have drained the boron solution into the core thus halting the nuclear chain reaction. However, during decommissioning when technicians attempted to drain the tank they were unable to do so due to a corroded pipe.

Because of its contributions to the nuclear and medical industries, the American Nuclear Society named Big Rock Point a Nuclear Historic Landmark.

The 235,000-pound (107,000 kg) reactor vessel was removed on August 25, 2003 and shipped to Barnwell, South Carolina on October 7, 2003.

All of Big Rock Point's 500-acre (200 ha) area has been torn down. Other than eight spent fuel casks, there are no signs that the site was home to a nuclear power plant.

Decommissioning costs totaled $390,000,000.

In July 2006, the state of Michigan announced it was considering buying the site, which features a mile of Lake Michigan shoreline, for a possible state park.

As part of the sale of Consumers' Palisades Nuclear Plant, the new owner Entergy accepted the responsibility for a basketball court size piece of property at Big Rock containing that plant's eight casks of spent fuel.

Located near Big Rock Point was a military base for the United States Air Force Strategic Air Command Detachment 6 known as Bay Shore Radar Bombing Score (RBS) Group. Low altitude flights were performed by B-52Cs to simulate deadly bombing missions. On January 7, 1971, a B52C (Using radio call sign ‘Hiram 16’) from the bombing group at Westover Air Force Base near Springfield, Massachusetts took off to perform radar bomb scoring in tandem with the Bay Shore RBS group at the Bay Shore RBS Site. At 6:33 PM, after completing three successful electronic bombings, the Bay Shore RBS crew lost contact with the B-52C flight crew. Witnesses observed a fireball falling from the sky with a large associated loud explosion as the B-52C impacted the water at Little Traverse Bay, 5 miles north of the Big Rock Point Nuclear Power Plant. All nine on board were lost. This became known as 1971 B-52C Lake Michigan crash.

Click the following links for locations of interest nearby:
Info Updates:
No Updates Found
 Photos:13

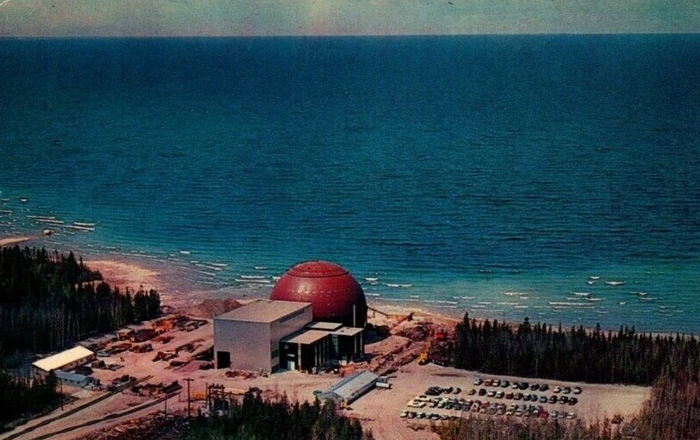

Big Rock Point Nuclear Power Plant - Old Postcard
Old Postcard
Big Rock Point Nuclear Power Plant - Old Postcard
Old Postcard

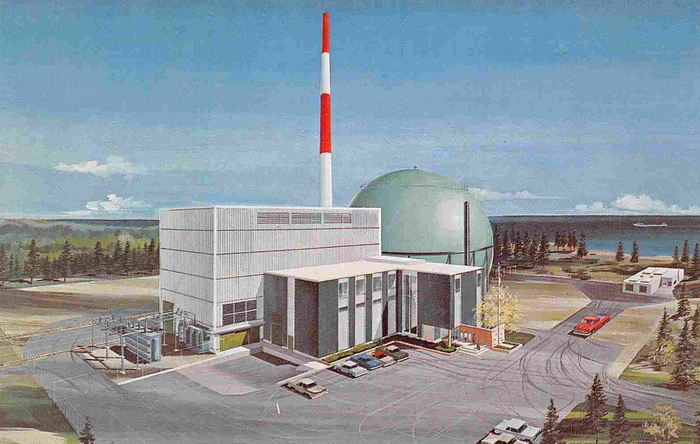

Big Rock Point Nuclear Power Plant - Old Postcard
Old Postcard
Big Rock Point Nuclear Power Plant - Old Postcard
Old Postcard
Big Rock Point Nuclear Power Plant - Old Postcard
Old Postcard
Big Rock Point Nuclear Power Plant - Old Postcard
Old Postcard
Big Rock Point Nuclear Power Plant - Entrance Off Of Us-31 As Of 2022
Entrance Off Of Us-31 As Of 2022
Big Rock Point Nuclear Power Plant - Information Office
Information Office
Big Rock Point Nuclear Power Plant - 2005 Aerial
2005 Aerial
Big Rock Point Nuclear Power Plant - 2020 Aerial - Gone
2020 Aerial - Gone
Big Rock Point Nuclear Power Plant - Matchbook
Matchbook
Big Rock Point Nuclear Power Plant - Matchbook
Matchbook
Big Rock Point Nuclear Power Plant - Pin
Pin
